This practical aims to illustrate the basics of phylogenetic reconstruction using R, with an emphasis on how the methods work, how their results can be interpreted, and the relative advantages and limitations of the methods. Three main classes of phylogenetic approaches are introduced, namely distance-based, maximum parsimony, and maximum likelihood methods. We also illustrate how to assess the reliability of individual nodes using bootstrap, and show how a simple linear model can be used to estimate a molecular clock in rooted phylogenies. Methods are illustrated using a dataset of seasonal influenza isolates sampled in the US from 1993 to 2008.

Introduction

Phylogenetics in a nutshell

The reconstruction of evolutionary relationships of a set of organisms can be a tricky task, and has led to the development of a variety of methods over the last decades, implemented in an even larger number of software. However, these methods can be classified into three main categories:

• distance-based methods: compute a matrix of pairwise genetic distances between the studied taxa, and summarize it using a hierarchical clustering algorithm such as UPGMA or Neighbour-Joining. Advantages: fast (the fastest) and flexible (different genetic distances allow to account for different features of DNA sequence evolution). Limitations: no model comparison (can’t test for the ‘best’ tree, or the ‘best’ model of evolution); may be inaccurate and highly dependent on the distance and clustering algorithm chosen.

• maximum parsimony: seeks the tree with the smallest number of overall genetic changes between the taxa. This is achieved by changing randomly the topology of the tree until parsimony is no longer improved. Advantages: intuitive interpretation (assumes that the simplest scenario is the most likely), usually accurate when the amount of genetic changes is small. Limitations: computer-intensive, simplistic model of evolution, no model comparison, inaccurate when substantial evolution takes place, and when heterogeneous mutation rates exist in different parts of the tree.

• likelihood-based method: based on a model of sequence evolution which allows to compute a likelihood, that is, the probability of observing the data given the model and a set of parameters. There are two main branches of likelihood-based methods: maximum likelihood and Bayesian methods. The first seeks the ‘best’ tree and parameter values, i.e. the one maximizing the likelihood. The second derives samples of trees and model parameters which are the most consistent with the data and possible prior knowledge about the tree/parameters. Advantages: flexible (any model of evolution can be used), usually accurate, model selection possible, measure of uncertainty (in Bayesian approaches). Limitations: computer-intensive, model selection possibly cumbersome.

The R software implements one of the largest selections of phylogenetic methods, including all of the above except for Bayesian reconstruction.

Required packages

This practical requires a working version of ~ (R Core Team 2017) greater than or equal to 2.15.2. It uses the following packages: stats implements basic hierarchical clustering routines, ade4 (Dray, Dufour, and Chessel 2007) and adegenet (Jombart 2008; Jombart and Ahmed 2011) are here used essentially for their graphics, ape [Paradis, Claude, and Strimmer (2004); Popescu2012-ct] is the core package for phylogenetics, and phangorn (Schliep 2011) implements parsimony and likelihood-based methods. Make sure that the dependencies are installed as well when installing the packages:

install.packages("adegenet", dep=TRUE)
install.packages("phangorn", dep=TRUE)

Then load the packages using:

library(stats)
library(ade4)
library(ape)
library(adegenet)
library(phangorn)

The data

The data used in this practical are DNA sequences of seasonal influenza (H3N2) downloaded from Genbank http://www.ncbi.nlm.nih.gov/genbank/. Alignments have been realized beforehand using standard tools (Clustalw2 for basic alignment and Jalview for refining the results). We selected 80 isolates genotyped for the hemagglutinin (HA) segment sampled in the US from 1993 to 2008. The dataset consists of two files: i) usflu.fasta, a file containing aligned DNA sequences and ii) usflu.annot.csv, a comma-separated file containing useful annotations of the sequences.

First download these files (right-click → Save Link As…) and store them in a folder data/ in your working directory. To read the DNA sequences into R, we use fasta2DNAbin from the adegenet package:

dna <- fasta2DNAbin(file = "data/usflu.fasta")
dna
class(dna)

##
##  Converting FASTA alignment into a DNAbin object...
##
##
##  Finding the size of a single genome...
##
##
##  genome size is: 1,701 nucleotides
##
## ( 30  lines per genome )
##
##  Importing sequences...
## ........................................................................................................................................................................................................................................................................................................................................................................
##  Forming final object...
##
## ...done.
## 80 DNA sequences in binary format stored in a matrix.
##
## All sequences of same length: 1701
##
## Labels:
##  CY013200
##  CY013781
##  CY012128
##  CY013613
##  CY012160
##  CY012272
## ...
##
## Base composition:
##     a     c     g     t
## 0.335 0.200 0.225 0.239
## [1] "DNAbin"

Sequences are stored as DNAbin objects, an efficient representation of DNA/RNA sequences which use bytes (as opposed to character strings) to code nucleotides, resulting in considerable savings in terms of memory required to store the data. While the present dataset is very small, such compression can become essential for larger genomes (bacterial genomes are typically a few millions of nucleotides long). Note that for even larger datasets, more efficient data reduction can be achieved using the bit-level coding of polymorphic sites implemented in adegenet (Jombart and Ahmed 2011).

The annotation file is read in R using the standard procedure:

annot <- read.csv("data/usflu.annot.csv",
                  header = TRUE, row.names = 1, stringsAsFactors = FALSE)

head(annot)
##   accession year                        misc
## 1  CY013200 1993 (A/New York/783/1993(H3N2))
## 2  CY013781 1993 (A/New York/802/1993(H3N2))
## 3  CY012128 1993 (A/New York/758/1993(H3N2))
## 4  CY013613 1993 (A/New York/766/1993(H3N2))
## 5  CY012160 1993 (A/New York/762/1993(H3N2))
## 6  CY012272 1994 (A/New York/729/1994(H3N2))
dim(annot)
## [1] 80  3

accession contains the Genbank accession numbers, which are unique sequence identifiers; year is the year of collection of the isolates; misc contains other possibly useful information. Before going further, we check that isolates are identical in both files (accession numbers are used as labels for the sequences):

dim(dna)
## [1]   80 1701
dim(annot)
## [1] 80  3
all(annot$accession == rownames(dna))
## [1] FALSE
table(annot$year)
##
## 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007
##    5    5    5    5    5    5    5    5    5    5    5    5    5    5    5
## 2008
##    5

Good! The data we will analyse are 80 isolates (5 per year) typed for the same 1701 nucleotides.

Distance-based phylogenies

Distance-based phylogenetic reconstruction consists in i) computing pairwise genetic distances between individuals (here, isolates), ii) representing these distances using a tree, and iii) evaluating the relevance of this representation.

Computing genetic distances

We first compute genetic distances using *ape*’s dist.dna, which proposes no less than 15 different genetic distances (see ?dist.dna for details). Here, we use Tamura and Nei 1993’s model (Tamura and Nei 1993) which allows for different rates of transitions and transversions, heterogeneous base frequencies, and between-site variation of the substitution rate.

D <- dist.dna(dna, model = "TN93")
class(D)
## [1] "dist"
length(D)
## [1] 3160

D is an object of class dist which contains the distances between every pairs of sequences.

Now that genetic distances between isolates have been computed, we need to visualize this information. There are n(n-1)/2 distances for n sequences; here, n=80 so that the genetic relationships between the sampled isolates are described by 80 79 / 2 = 3160 pairwise distances. Most of the time, summarising such information is not entirely trivial. The simplest approach is plotting directly the matrix of pairwise distances:

temp <- as.data.frame(as.matrix(D))
table.paint(temp, cleg = 0, clabel.row = .5, clabel.col = .5)

Darker shades of grey represent greater distances. Note that to use image to produce similar plots, data need to be transformed first; for instance:

temp <- t(as.matrix(D))
temp <- temp[,ncol(temp):1]

par(mar = c(1,5,5,1))
image(x = 1:80, y = 1:80, temp, col = rev(heat.colors(100)),
      xaxt = "n", yaxt = "n", xlab="",ylab="")
axis(side = 2, at = 1:80, lab = rev(rownames(dna)), las = 2, cex.axis = .5)
axis(side = 3, at = 1:80, lab = rownames(dna), las = 3, cex.axis = .5)

(see image.plot in the package fields for similar plots with a legend).

Since the data are roughly ordered by year, we can already see some genetic structure appearing, but this is admittedly not the most satisfying or informative approach, and tells us little about the evolutionary relationships between our isolates.

Building trees

We use trees to get a better representation of the genetic distances between individuals. It is important, however, to bear in mind that the obtained trees are not necessarily efficient representations of the original distances, and information can (and likely will) be lost in the process.

A wide array of algorithms for constructing trees from a distance matrix are available in R, including:

• nj (ape package): the classical Neighbor-Joining algorithm.

• bionj (ape): an improved version of Neighbor-Joining.

• fastme.bal and fastme.ols (ape): minimum evolution algorithms. hclust (stats): classical hierarchical clustering algorithms including single linkage, complete linkage, UPGMA, and others.

Here, we go for the standard:

tre <- nj(D)
class(tre)
## [1] "phylo"
tre <- ladderize(tre)
tre
##
## Phylogenetic tree with 80 tips and 78 internal nodes.
##
## Tip labels:
##   CY013200,  CY013781,  CY012128,  CY013613,  CY012160,  CY012272, ...
##
## Unrooted; includes branch lengths.
plot(tre, cex = .6)
title("A simple NJ tree")

Trees created in the package ape are instances of the class phylo. See ?read.tree for a description of this class.

Plotting trees

The plotting method offers many possibilities for plotting trees; see ?plot.phylo for more details. Functions such as tiplabels, nodelabels, edgelabels and axisPhylo can also be useful to annotate trees. For instance, we may simply represent years using different colors (red = ancient; blue = recent):

plot(tre, show.tip = FALSE)
title("Unrooted NJ tree")
myPal <- colorRampPalette(c("red","yellow","green","blue"))
tiplabels(annot$year, bg = num2col(annot$year, col.pal = myPal),
          cex=.5)
temp <- pretty(1993:2008, 5)
legend("bottomleft", fill = num2col(temp, col.pal = myPal),
       leg = temp, ncol = 2)

This illustrates a common mistake when interpreting phylogenetic trees. In the above figures, we tend to assume that the left-side of the phylogeny is `ancestral’, while the right-side is ‘recent’. This is wrong (as suggested by the colors) unless the phylogeny is actually rooted, i.e. some external taxa has been used to define what is the most ‘ancient’ split in the tree. The present tree is not rooted, and should be better represented as such:

plot(tre, type = "unrooted", show.tip = FALSE)
title("Unrooted NJ tree")
tiplabels(tre$tip.label, bg = num2col(annot$year, col.pal = myPal),
          cex = .5)

In the present case, a sensible rooting would be any of the most ancient isolates (from 1993). We can take the first one:

head(annot)
##   accession year                        misc
## 1  CY013200 1993 (A/New York/783/1993(H3N2))
## 2  CY013781 1993 (A/New York/802/1993(H3N2))
## 3  CY012128 1993 (A/New York/758/1993(H3N2))
## 4  CY013613 1993 (A/New York/766/1993(H3N2))
## 5  CY012160 1993 (A/New York/762/1993(H3N2))
## 6  CY012272 1994 (A/New York/729/1994(H3N2))
tre2 <- root(tre, out = 1)
tre2 <- ladderize(tre2)

and plot the result:

plot(tre2, show.tip = FALSE, edge.width = 2)
title("Rooted NJ tree")
tiplabels(tre$tip.label,
          bg = transp(num2col(annot$year, col.pal = myPal),.7),
          cex = .5, fg = "transparent")
axisPhylo()
temp <- pretty(1993:2008, 5)
legend("topright",
       fill = transp(num2col(temp, col.pal = myPal),.7),
       leg = temp, ncol = 2)

The phylogeny is now rooted. The shape of this tree is typical of influenza. What can you say about the evolution of influenza and the fitness of different viral lineages, based on this tree? What does the ‘trunk’ of this tree represent? Would there be any interest in predicting the genome of the trunk?

Estimating a molecular clock

Rooted trees are also useful for assessing the rate of evolution of a given gene. We call molecular clock the accumulation of mutations over time. Can you visually assess if there are signs of a molecular clock in this tree? A quantitative analysis is very easy to perform, and merely relies on regressing the number of mutations from the root to the time of divergence from the root:

mutFromRoot <- as.matrix(dist.dna(dna, model = "N"))[1,]
yearFromRoot <- annot$year - annot$year[1]
plot(mutFromRoot ~ yearFromRoot, xlab = "Years from the root",
     ylab = "Mutations from the root", main = "H3N2 molecular clock")
lm.clock <- lm(mutFromRoot ~ -1 + yearFromRoot)
abline(lm.clock, col = "blue",lwd = 2)

summary(lm.clock)
##
## Call:
## lm(formula = mutFromRoot ~ -1 + yearFromRoot)
##
## Residuals:
##     Min      1Q  Median      3Q     Max
## -12.327  -1.577   1.004   6.386  13.000
##
## Coefficients:
##              Estimate Std. Error t value Pr(>|t|)
## yearFromRoot  7.73274    0.07443   103.9   <2e-16 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 5.86 on 79 degrees of freedom
## Multiple R-squared:  0.9927, Adjusted R-squared:  0.9926
## F-statistic: 1.079e+04 on 1 and 79 DF,  p-value: < 2.2e-16
lm.clock$coefficients
## yearFromRoot
##     7.732742
lm.clock$coefficients/ncol(dna)
## yearFromRoot
##  0.004545998
365/ lm.clock$coefficients
## yearFromRoot
##     47.20189

What is the substitution rate per year for the HA segment? What is the substitution rate per year and per site? On average, how many days would you expect to wait before observing one mutation on a transmission chain? Knowing that the generation time of influenza is roughly around 2-3 days, would you recommend using HA sequences for reconstructing transmission trees of influenza epidemics? What alternative would you suggest?

Assessing the quality of a phylogeny

Many genetic distances and hierarchical clustering algorithms can be used to build trees; not all of them are appropriate for a given dataset. Genetic distances rely on hypotheses about the evolution of DNA sequences which should be taken into account. For instance, the mere proportion of differing nucleotides between sequences (model = 'raw} in dist.dna) is easy to interprete, but only makes sense if all substitutions are equally frequent. In practice, simple yet flexible models such as that of Tamura and Nei (Tamura and Nei 1993) are probably fair choices. At the very least, the genetic distance used should allow different rates for transitions (a <-> g, c <-> t) and transversions (other changes).

Once one has chosen an appropriate genetic distance and built a tree using this distance, an essential yet most often overlooked question is whether this tree actually is a good representation of the original distance matrix. This is easily investigated using simple biplots and correlation indices. The function cophenetic is used to compute distances between the tips of the tree. Note that more distances are available in the adephylo package (see distTips function).

x <- as.vector(D)
y <- as.vector(as.dist(cophenetic(tre2)))

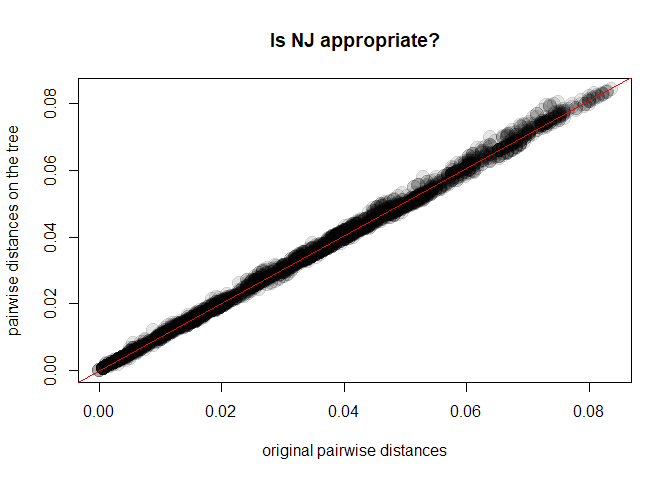

plot(x, y, xlab = "original pairwise distances", ylab = "pairwise distances on the tree",
     main = "Is NJ appropriate?", pch = 20, col = transp("black",.1), cex = 3)
abline(lm(y~x), col = "red")

cor(x,y)^2
## [1] 0.9975154

As it turns out, our Neighbor-Joining tree (tre2) is a very good representation of the chosen genetic distances. Things would have been different had we chosen, for instance, UPGMA:

tre3 <- as.phylo(hclust(D,method = "average"))
y <- as.vector(as.dist(cophenetic(tre3)))
plot(x, y, xlab = "original pairwise distances", ylab = "pairwise distances on the tree",
     main = "Is UPGMA appropriate?", pch = 20, col = transp("black",.1), cex = 3)
abline(lm(y~x), col = "red")

cor(x,y)^2
## [1] 0.7393009

In this case, UPGMA is a poor choice. Why is this? A first explanation is that UPGMA forces ultrametry (all the tips are equidistant to the root):

plot(tre3, cex = .5)
title("UPGMA tree")

The underlying assumption is that all lineages have undergone the same amount of evolution, which is obviously not the case in seasonal influenza sampled over 16 years.

Another validation of phylogenetic trees, much more commonly used, is bootstrap. Bootstrapping a phylogeny consists in sampling the nucleotides with replacement, rebuilding the phylogeny, and checking if the original nodes are present in the bootstrapped trees. In practice, this procedure is repeated a large number of times (e.g. 100, 1000), depending on how computer-intensive the phylogenetic reconstruction is. The underlying idea is to assess the variability in the obtained topology which results from conducting the analyses on a random sample the genome. Note that the assumption that the analysed sequences represent a random sample of the genome is often dubious. For instance, this is not the case in our toy dataset, since HA segment has a different rate of evolution and experiences different selective pressures from other segments of the influenza genome. We nonetheless illustrate the procedure, implemented by boot.phylo:

myBoots <- boot.phylo(tre2, dna, function(e)
                      root(nj(dist.dna(e, model = "TN93")),1))
myBoots

The output gives the number of times each node was identified in bootstrapped analyses (the order is the same as in the original object). It is easily represented using nodelabels:

plot(tre2, show.tip = FALSE, edge.width = 2)
title("NJ tree + bootstrap values")
tiplabels(frame = "none", pch = 20,
          col = transp(num2col(annot$year, col.pal = myPal),.7),
          cex = 3, fg = "transparent")
axisPhylo()
temp <- pretty(1993:2008, 5)
legend("topright", fill = transp(num2col(temp, col.pal = myPal),.7),
       leg = temp, ncol = 2)
nodelabels(myBoots, cex = .6)

As we can see, some nodes are very poorly supported. One common practice is to collapse these nodes into multifurcations. There is no dedicated method for this in ape, but one simple workaround consists in setting the corresponding edges to a length of zero (here, with bootstrap <70%), and then collapsing the small branches:

temp <- tre2
N <- length(tre2$tip.label)
toCollapse <- match(which(myBoots<70)+N, temp$edge[,2])
temp$edge.length[toCollapse] <- 0
tre3 <- di2multi(temp, tol = 0.00001)

The new tree might be slightly less informative, but more robust than the previous one:

plot(tre3, show.tip = FALSE, edge.width = 2)
title("NJ tree after collapsing weak nodes")
tiplabels(tre3$tip.label, bg = transp(num2col(annot$year, col.pal = myPal), .7),
          cex = .5, fg = "transparent")
axisPhylo()
temp <- pretty(1993:2008, 5)
legend("topright", fill = transp(num2col(temp, col.pal = myPal), .7),
       leg = temp, ncol = 2)

Maximum parsimony phylogenies

Introduction

Phylogenetic reconstruction based on parsimony seeks trees which minimize the total number of changes (substitutions) from ancestors to descendents. While a number of criticisms can be made to this approach, it is a simple way to infer phylogenies for data which display low divergence (i.e. most taxa differ from each other by only a few nucleotides, and the overall substitution rate is low).

In practice, there is often no way to perform an exhaustive search amongst all possible trees to find the most parsimonious one, and heuristic algorithms are used to browse the space of possible trees. The strategy is fairly simple: i) initialize the algorithm using a tree and ii) make small changes to the tree and retain those leading to better parsimony, until the parsimony score stops improving.

Implementation

Parsimony-based phylogenetic reconstruction is implemented in the package phangorn. It requires a tree (in *ape*’s format, i.e. a phylo object) and the original DNA sequences in *phangorn*’s own format, phyDat. We convert the data and generate a tree to initialize the method:

dna2 <- as.phyDat(dna)
class(dna2)
## [1] "phyDat"
dna2
## 80 sequences with 1701 character and 269 different site patterns.
## The states are a c g t
tre.ini <- nj(dist.dna(dna,model = "raw"))
tre.ini
##
## Phylogenetic tree with 80 tips and 78 internal nodes.
##
## Tip labels:
##   CY013200,  CY013781,  CY012128,  CY013613,  CY012160,  CY012272, ...
##
## Unrooted; includes branch lengths.

The parsimony of a given tree is given by:

parsimony(tre.ini, dna2)
## [1] 422

Then, optimization of the parsimony is achieved by:

tre.pars <- optim.parsimony(tre.ini, dna2)
## Final p-score 420 after  2 nni operations
tre.pars
##
## Phylogenetic tree with 80 tips and 78 internal nodes.
##
## Tip labels:
##   CY013200,  CY013781,  CY012128,  CY013613,  CY012160,  CY012272, ...
##
## Unrooted; no branch lengths.

Here, the final result is very close to the original tree. The obtained tree is unrooted and does not have branch lengths, but it can be plotted as previously:

plot(tre.pars, type = "unr", show.tip = FALSE, edge.width = 2)
title("Maximum-parsimony tree")
tiplabels(tre.pars$tip.label, bg = transp(num2col(annot$year, col.pal = myPal),.7),
          cex = .5, fg = "transparent")
temp <- pretty(1993:2008, 5)
legend("bottomright", fill = transp(num2col(temp, col.pal = myPal),.7),
       leg = temp, ncol = 2, bg = transp("white"))

In this case, parsimony gives fairly consistent results with other approaches, which is only to be expected whenever the amount of divergence between the sequences is fairly low, as is the case in our data.

Maximum likelihood phylogenies

Introduction

Maximum likelihood phylogenetic reconstruction is somehow similar to parsimony methods in that it browses a space of possible tree topologies looking for the ‘best’ tree. However, it offers far more flexibility in that any model of sequence evolution can be taken into account. Given one model of evolution, one can compute the likelihood of a given tree, and therefore optimization procedures can be used to infer both the most likely tree topology and model parameters.

As in distance-based methods, model-based phylogenetic reconstruction requires thinking about which parameters should be included in a model. Usually, all possible substitutions are allowed to have different rates, and the substitution rate is allowed to vary across sites according to a gamma distribution. We refer to this model as GTR + Γ(4) (GTR: global time reversible). More information about phylogenetic models can be found in (Kelchner and Thomas 2007).

Getting a ML tree

Likelihood-based phylogenetic reconstruction is implemented in the package phangorn. As in the previous section, we use the data dna2, converted into *phangorn*’s format. We choose a Neighbor-Joining tree of Tamura and Nei’s 1993 distance to get an initial tree.

class(dna2)
## [1] "phyDat"
dna2
## 80 sequences with 1701 character and 269 different site patterns.
## The states are a c g t
tre.ini <- nj(dist.dna(dna,model = "TN93"))
tre.ini
##
## Phylogenetic tree with 80 tips and 78 internal nodes.
##
## Tip labels:
##   CY013200,  CY013781,  CY012128,  CY013613,  CY012160,  CY012272, ...
##
## Unrooted; includes branch lengths.

This tree is most likely not the ML tree, but we need it as a ‘reasonable’ starting point to initialize the optimization procedure. The likelihood of this initial tree is computed using pml:

fit.ini <- pml(tre.ini, dna2, k = 4)
## negative edges length changed to 0!
fit.ini
##
##  loglikelihood: -5641.785
##
## unconstrained loglikelihood: -4736.539
## Discrete gamma model
## Number of rate categories: 4
## Shape parameter: 1
##
## Rate matrix:
##   a c g t
## a 0 1 1 1
## c 1 0 1 1
## g 1 1 0 1
## t 1 1 1 0
##
## Base frequencies:
## 0.25 0.25 0.25 0.25

We now have all the information needed for seeking a maximum likelihood solution using optim.pml; we specify that we want to optimize tree topology (optNni = TRUE), base frequencies (optBf = TRUE), the rates of all possible subtitutions (optQ = TRUE), and use a gamma distribution to model variation in the substitution rates across sites (optGamma = TRUE):

fit <- optim.pml(fit.ini, optNni = TRUE, optBf = TRUE,
                 optQ = TRUE, optGamma = TRUE)

fit
##
##  loglikelihood: -5325.723
##
## unconstrained loglikelihood: -4736.539
## Discrete gamma model
## Number of rate categories: 4
## Shape parameter: 0.2676999
##
## Rate matrix:
##           a         c         g         t
## a 0.0000000 1.9788788 6.6454555 0.6487415
## c 1.9788788 0.0000000 0.1715952 8.2484828
## g 6.6454555 0.1715952 0.0000000 1.0000000
## t 0.6487415 8.2484828 1.0000000 0.0000000
##
## Base frequencies:
## 0.3368452 0.1978542 0.2244658 0.2408349
class(fit)
## [1] "pml"
names(fit)
##  [1] "logLik"  "inv"     "k"       "shape"   "Q"       "bf"      "rate"
##  [8] "siteLik" "weight"  "g"       "w"       "eig"     "data"    "model"
## [15] "INV"     "ll.0"    "tree"    "lv"      "call"    "df"      "wMix"
## [22] "llMix"

fit is a list with class pml storing various useful information about the model parameters and the optimal tree (stored in fit$tree). In this example, we can see from the output that transitions (a <-> g and c <-> t) are much more frequent than transversions (other changes), which is consistent with biological expectations (transversions induce more drastic changes of chemical properties of the DNA and are more prone to purifying selection). One advantage of using probabilistic models of evolution is that different models can be compared formally. For instance, here, we can verify that the optimized tree is indeed better than the original one using standard likelihood ratio tests and AIC:

anova(fit.ini, fit)
## Likelihood Ratio Test Table
##   Log lik.  Df Df change Diff log lik. Pr(>|Chi|)
## 1  -5641.8 158
## 2  -5325.7 166         8        632.13  < 2.2e-16 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
AIC(fit.ini)
## [1] 11599.57
AIC(fit)
## [1] 10983.45

Both the likelihood ratio test (highly significant, function anova) and the AIC (lower = better) indicate that the new tree is a better model of the data than the initial one.

We can extract and plot the tree as we did before with other methods:

tre4 <- root(fit$tree,1)
tre4 <- ladderize(tre4)
plot(tre4, show.tip = FALSE, edge.width = 2)
title("Maximum-likelihood tree")
tiplabels(annot$year,
          bg = transp(num2col(annot$year, col.pal = myPal), .7),
          cex = .5, fg = "transparent")
axisPhylo()
temp <- pretty(1993:2008, 5)
legend("topright", fill = transp(num2col(temp, col.pal = myPal), .7),
       leg = temp, ncol = 2)

This tree is statistically better than the original NJ tree based on Tamura and Nei’s distance (Tamura and Nei 1993). However, we can note that it is remarkably similar to the ‘robust’ version of this distance-based tree (after collapsing weakly supported nodes). The structure of this dataset is fairly simple, and all methods give fairly consistent results. In practice, different methods can lead to different interpretations, and it is often worth exploring different approaches before drawing conclusions on the data.

About this document

Contributors

• Thibaut Jombart: initial version

Contributions are welcome via pull requests. The source file if this document can be found here.

Legal stuff

License: CC-BY Copyright: Thibaut Jombart, 2017

References

Dray, Stéphane, Anne B Dufour, and Daniel Chessel. 2007. “The Ade4 package-II: Two-Table and K-Table Methods.” R News 7 (2):47–52.

Jombart, Thibaut. 2008. “Adegenet: A R Package for the Multivariate Analysis of Genetic Markers.” Bioinformatics 24 (11):1403–5.

Jombart, Thibaut, and Ismaïl Ahmed. 2011. “Adegenet 1.3-1: New Tools for the Analysis of Genome-Wide SNP Data.” Bioinformatics 27 (21):3070–1.

Kelchner, Scot A, and Michael A Thomas. 2007. “Model Use in Phylogenetics: Nine Key Questions.” Trends Ecol. Evol. 22 (2):87–94.

Paradis, Emmanuel, Julien Claude, and Korbinian Strimmer. 2004. “APE: Analyses of Phylogenetics and Evolution in R Language.” Bioinformatics 20 (2):289–90.

R Core Team. 2017. “R: A Language and Environment for Statistical Computing.” Vienna, Austria: R Foundation for Statistical Computing.

Schliep, Klaus Peter. 2011. “Phangorn: Phylogenetic Analysis in R.” Bioinformatics 27 (4):592–93.

Tamura, K, and M Nei. 1993. “Estimation of the Number of Nucleotide Substitutions in the Control Region of Mitochondrial DNA in Humans and Chimpanzees.” Mol. Biol. Evol. 10 (3):512–26.
